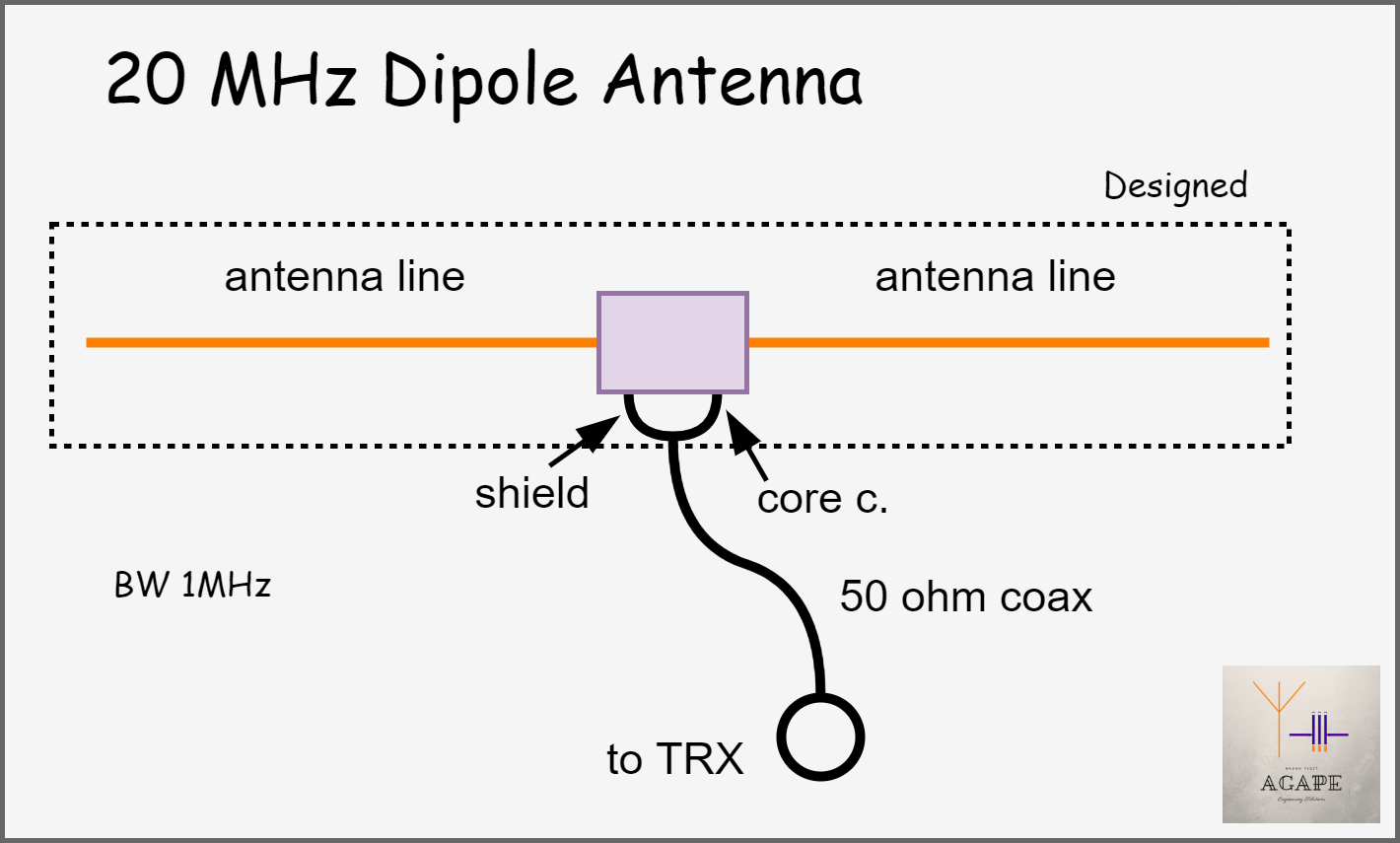

20.1 MHz dipole antenna design. It is designed for radio astronomy applications,
especially for listening to the planet Jupiter. Also, it can be used for other purposes.
You can click on the title for more details and S parameter graphs.
If you want to get the design, you can contact me using the button below.

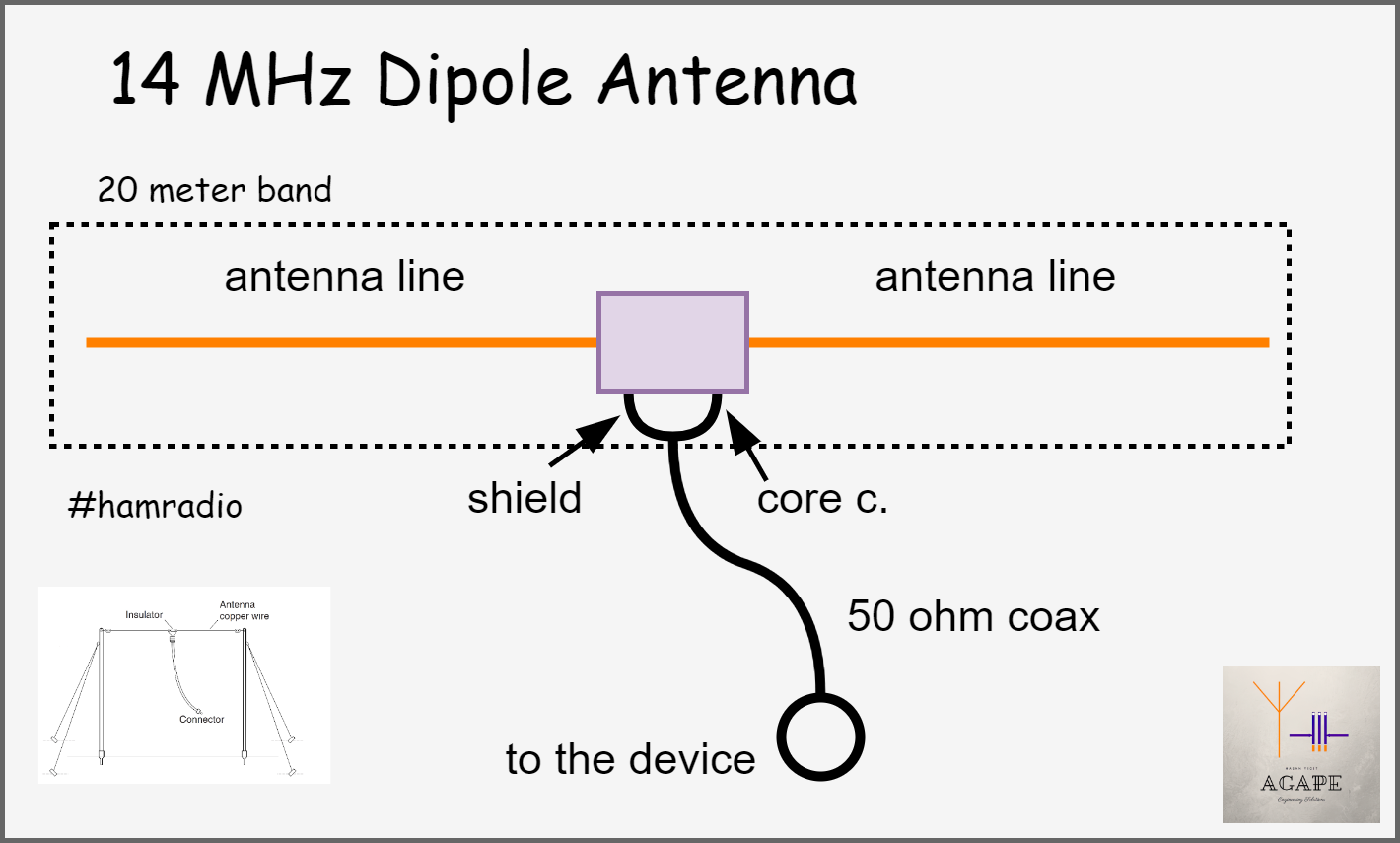

It is a design that is 14 MHz, 20-meter band, omnidirectional dipole antenna.
It consists of two parts in order to can be connected to a standard 50ohm coax cable.
You can click on the title for more details and S parameter graphs.
If you want to get the design, you can contact me using the button below.

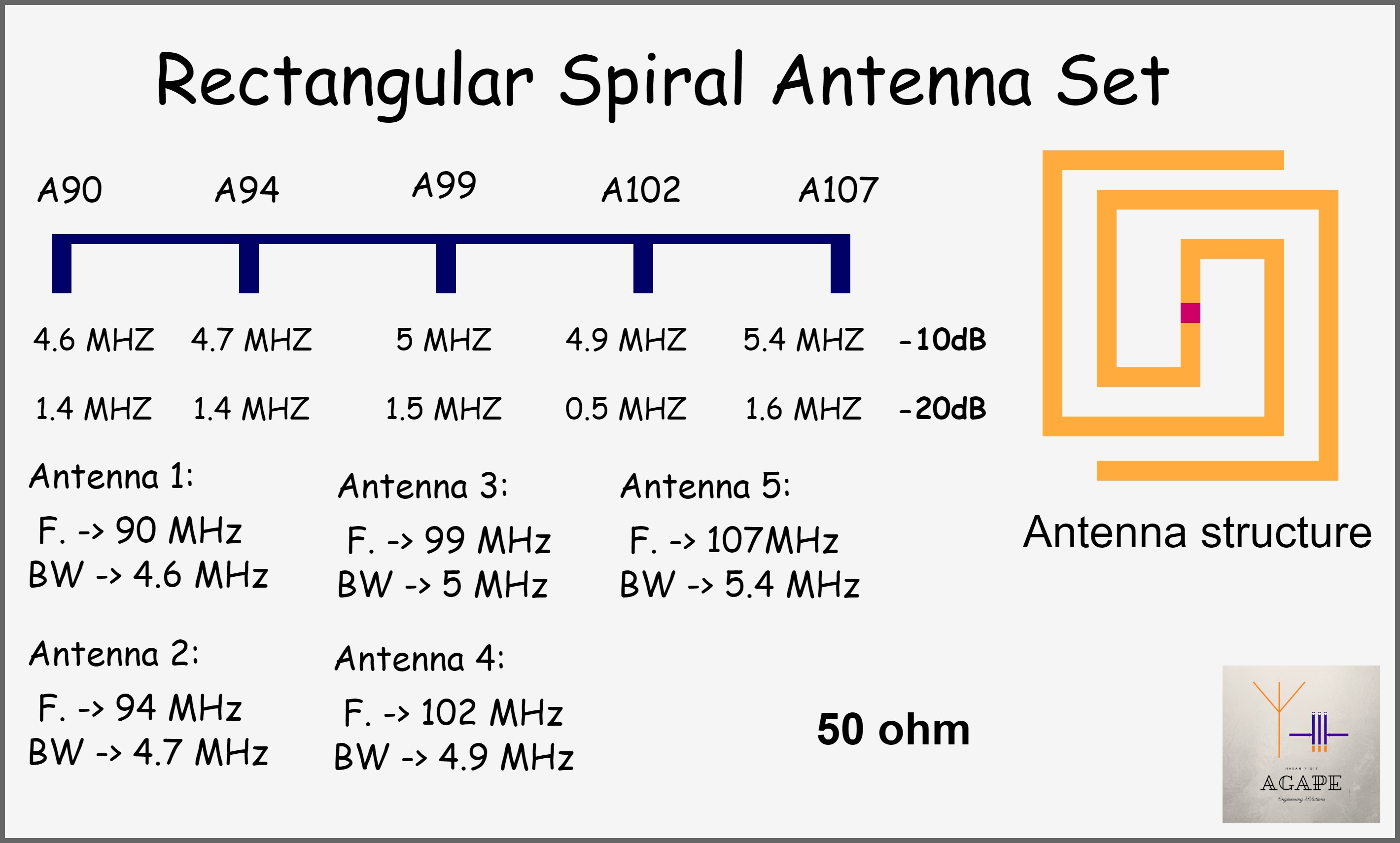

This antenna set consists of 5 rectangular spiral antennas in total. The bandwidth of these 5 antennas extends from 88 MHz to 110 MHz.
Besides exceeding -30 dB that all antennas are, center frequencies can exceed -35 dB or -40 dB.
You can click on the title for more details and S parameter graphs.
If you want to get the design, you can contact me using the button below.
